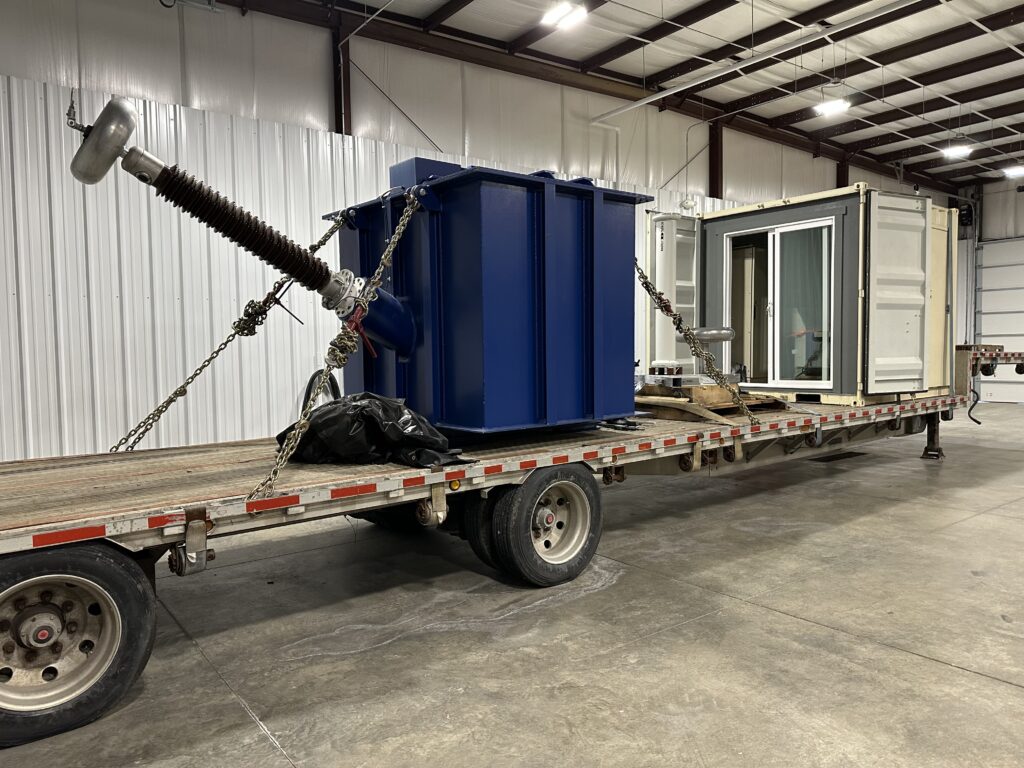

Resonant Test System Rental: RTD100-1000X
MVA offers short- and long-term rentals of our RTD100-1000X resonant test system, giving your team access to high-voltage test equipment for planned projects and temporary testing needs. Whether you are coordinating a commissioning schedule or preparing for an upcoming test program, contact MVA to discuss equipment availability, rental duration and your project requirements.
With a rated output of 100 kV, 1,000 kVA and 10 A, the RTD100-1000X provides multiple voltage taps and defined load-capacitance ranges to accommodate different testing requirements.
Flexible Control for Your Testing Program
The resonant test controller interfaces with a high-voltage reactor and regulator. It controls the variable transformer, exciter transformer and high-voltage reactor gap, adjusting inductance to control the output voltage from the high-voltage supply.
A touchscreen provides configuration and metering, while tactile momentary pushbuttons control selected functions. The controller supports automatic and manual operation, with the ability to configure up to six standard automatic test profiles.
RTD100-1000X Specifications
| Specification | Rating |
|---|---|
| Input | 480 V, single-phase |
| Output | 100 kV, 1,000 kVA, 10 A |
| Voltage taps | 50 kV at 20 A; 75 kV at 13.3 A; 100 kV at 10 A |
| Load capacitance at 100 kV | 13.3 nF to 265 nF |
| Load capacitance at 75 kV | 23.6 nF to 472 nF |
| Load capacitance at 50 kV | 53.1 nF to 1,060 nF |
| Duty cycle | 1 hour ON / 1 hour OFF at full rating; 12 cycles per day |
| Operating environment | Indoor use or outdoor use under fair weather conditions |
| Operating temperature | 10°C to 40°C |
| Humidity | Less than 90%, non-condensing |
| Pollution level | Low |
| Altitude | Less than 1,000 m; reduce maximum output by 1% for each 100 m above 1,000 m |
Plan Your Resonant Test System Rental
Selecting the right test equipment starts with understanding the equipment under test, required test voltage and anticipated load capacitance. Available input power, site conditions and the required duty cycle also affect project planning.
When requesting a rental quote, provide your project location, anticipated rental dates, equipment details and testing requirements. This information helps MVA discuss whether the RTD100-1000X specifications align with your planned application and coordinate the next steps.
Request a Rental Quote
Need a resonant test system for your next project? Submit the form below for RTD100-1000X rental availability and pricing. Our short and long-term rental options give your team flexibility to secure the equipment for the duration of your testing program.
